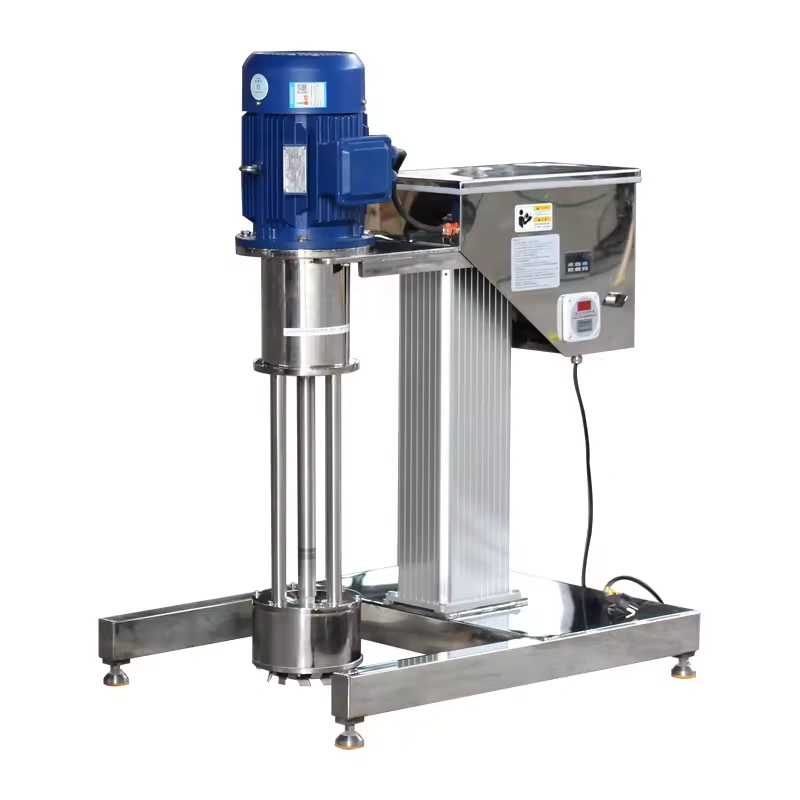

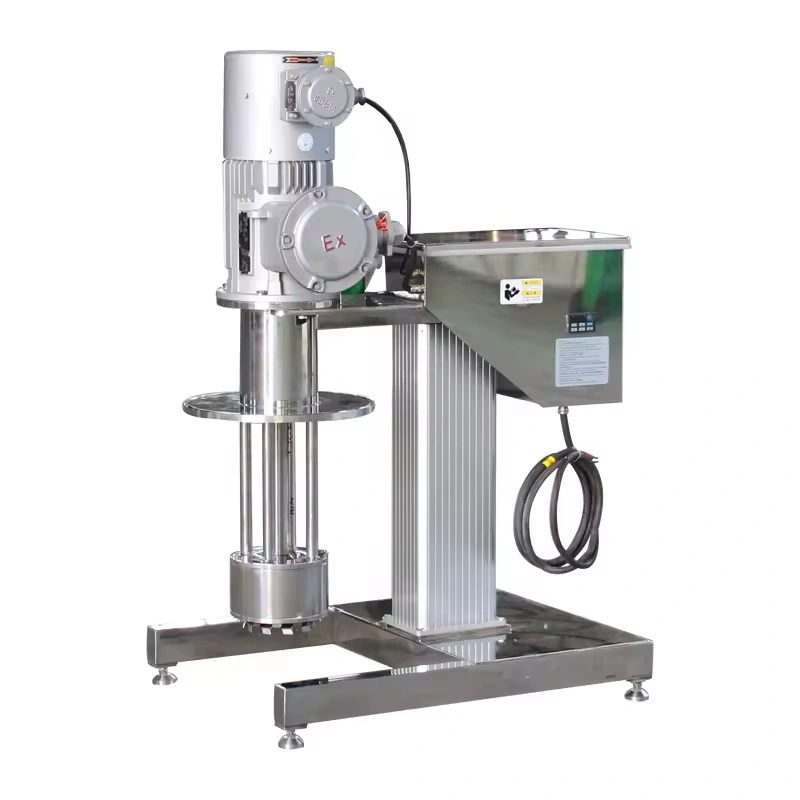

0-40L Electrical lift Dispersing Basket Bead Grinding Mill

Discover our versatile RMLM Series Basket Mills, covering a full capacity range from 0 to 40 Litres. Featuring a convenient electrical lift system and double-layer cooling tanks, these machines are expertly designed for efficient wet grinding and dispersion of fluid and medium-to-low viscosity materials. From lab-scale R&D to small-batch production, we provide the perfect grinding solution.

Online consultation Download

0-40L Electrical lift Dispersing Basket Bead Grinding Mill

Description

Full Capacity Range (0-40L): A complete series (RMLM-0.75 to RMLM-4) to seamlessly scale your production from laboratory testing (1.2L) up to pilot and small-scale manufacturing (40L).

Electrical Lift System:Effortlessly raise and lower the grinding basket with the precise electrical lift. This significantly saves labor, improves safety, and makes cleaning, color changes, and maintenance a breeze.

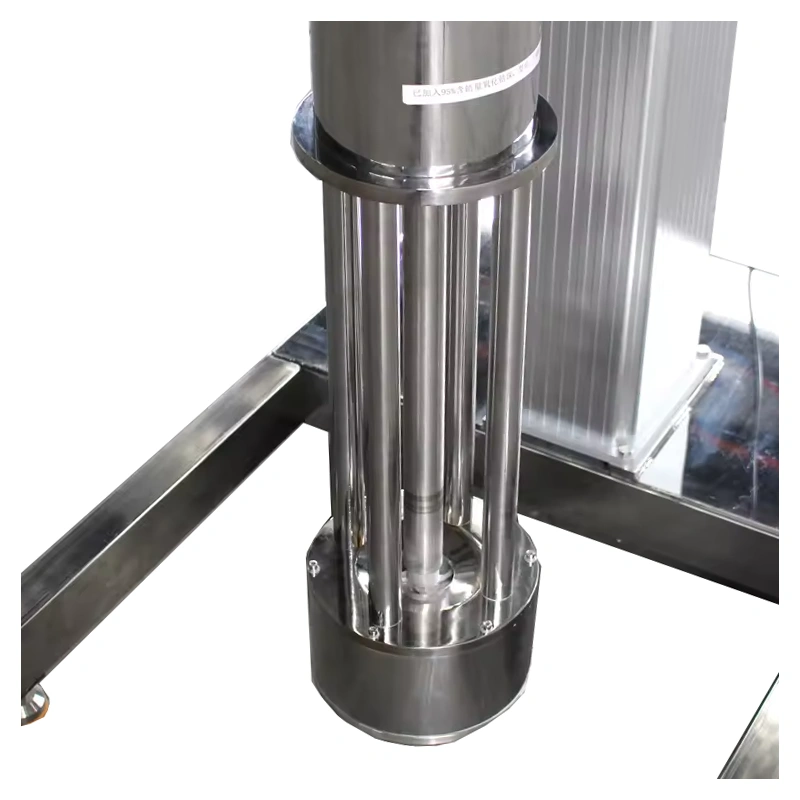

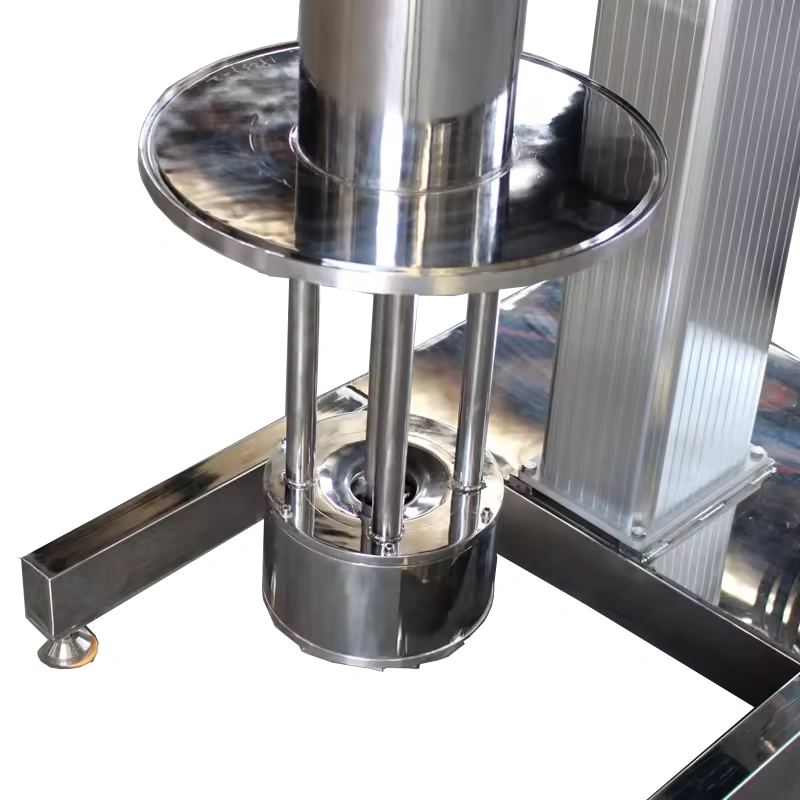

Integrated Dispersion & Grinding:The unique basket design combines pre-dispersion and fine grinding in one chamber, ensuring smooth material circulation and highly efficient single-pass processing.

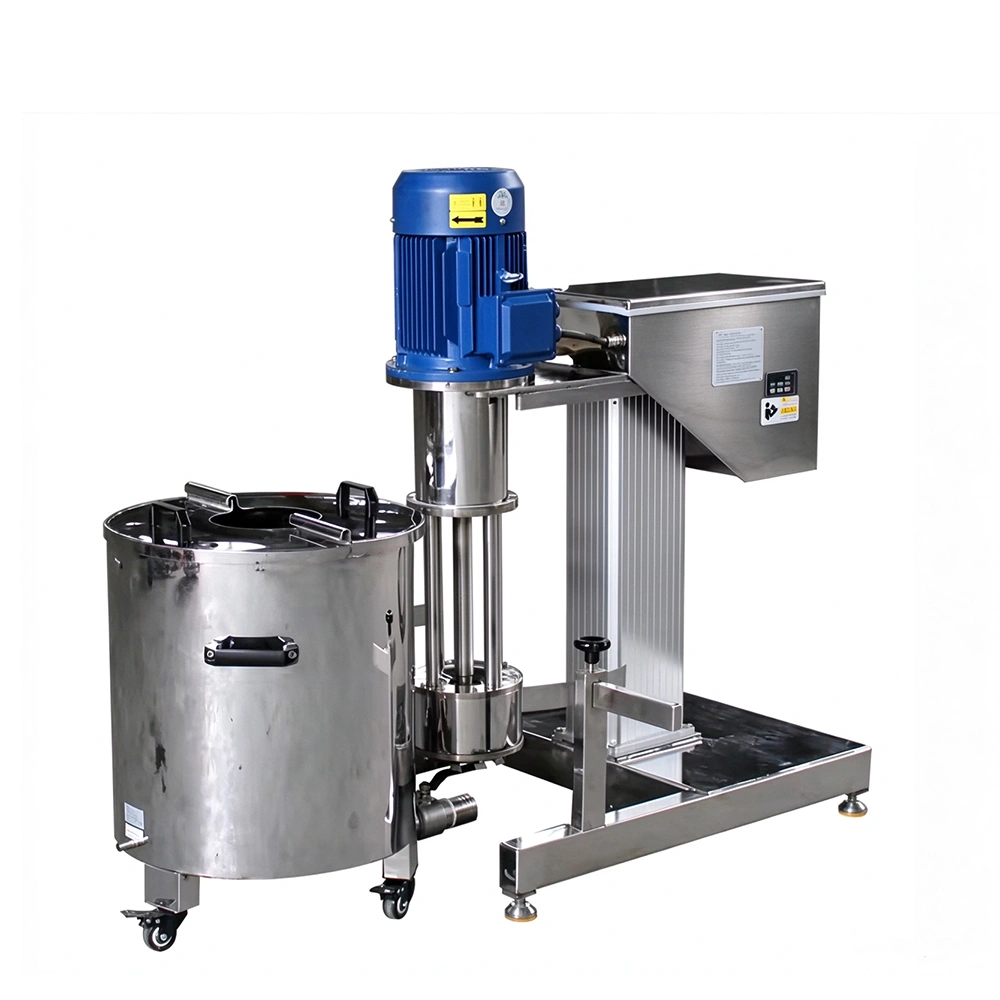

Double-Layer Cooling Tank: All models are equipped with jacketed tanks for efficient water cooling, keeping the processing temperature strictly controlled to protect heat-sensitive materials.

Contaminant-Free Grinding: Utilizes 95% high-purity zirconia beads (0.8-2.0 mm) for high grinding efficiency and zero metal contamination.

Features

Integrated Dispersion & Grinding;

Electrical Lift System

Double-Layer Cooling Tank (40L).

Premium Grinding Media;

Applications

Perfect for wet grinding and dispersion of fluid materials in industries such as coatings & paints, printing inks, pigments, agrochemicals, and battery materials (e.g., lithium battery slurry).

Competitive Advantage

High Grinding Efficiency

The Max speed can be 3000rpm. The grinding beads in the basket move irregularly, resulting high-speed collision and friction with each other, making the material particle size rapidly smaller.
Easy to operate and clean.

The basket mill comes with an energy-saving frequency converter, which can directly control the start-up and speed regulation of the equipment. The unique design of the grinding chamber allows direct cleaning with solvent circulation.

Specifications

Model	Power (kW)	Speed (rpm)	Tank Capacity (L)	Medium Diameter (mm)	Stroke (mm)
RMLM-0.75	0.75	0-3000	1.2	0.8-2.0	200
RMLM-1.1	1.1	0-3000	5	0.8-2.0	250
RMLM-1.5	1.5	0-3000	10	0.8-2.0	350
RMLM-2.2	2.2	0-3000	20	0.8-2.0	400
RMLM-4.0	4.0	0-3000	40	0.8-2.0	450
