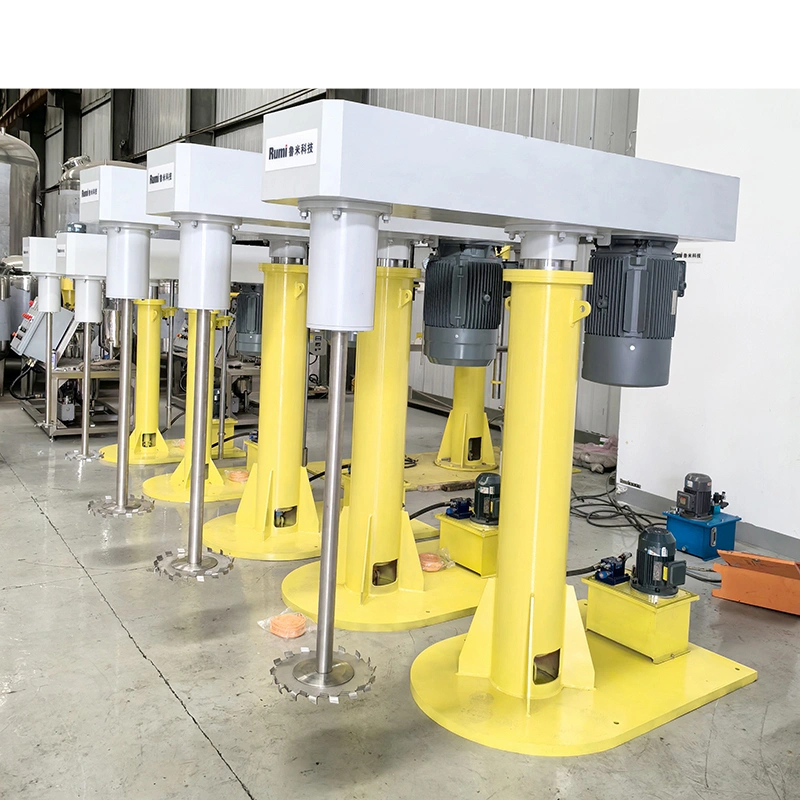

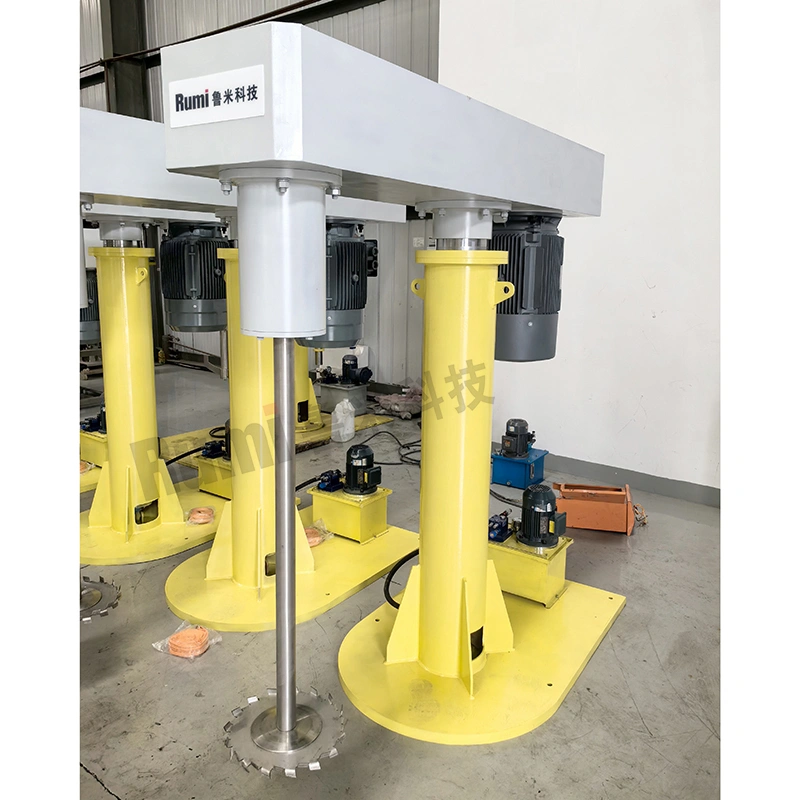

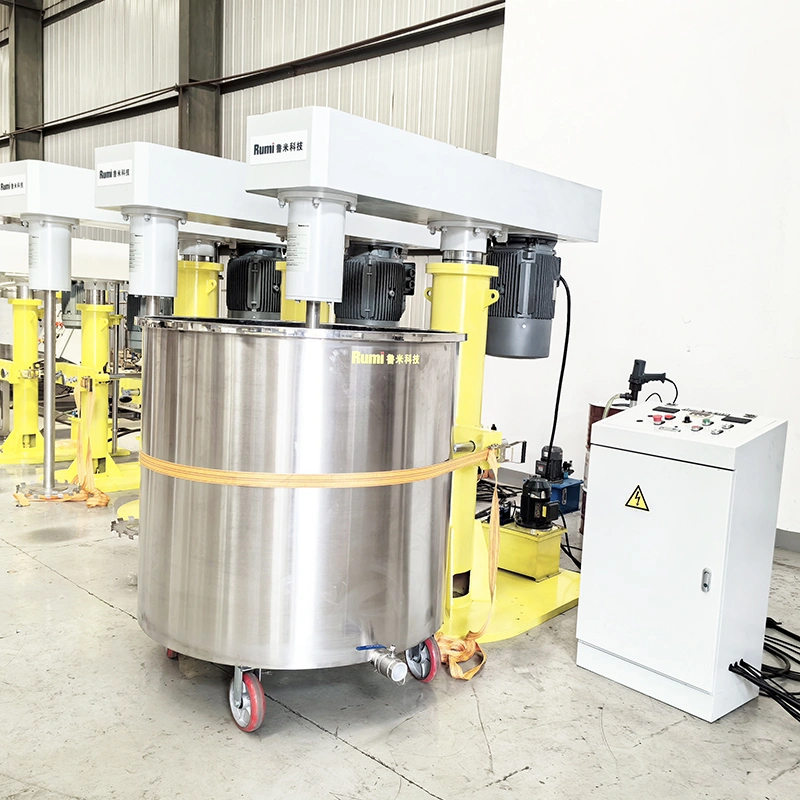

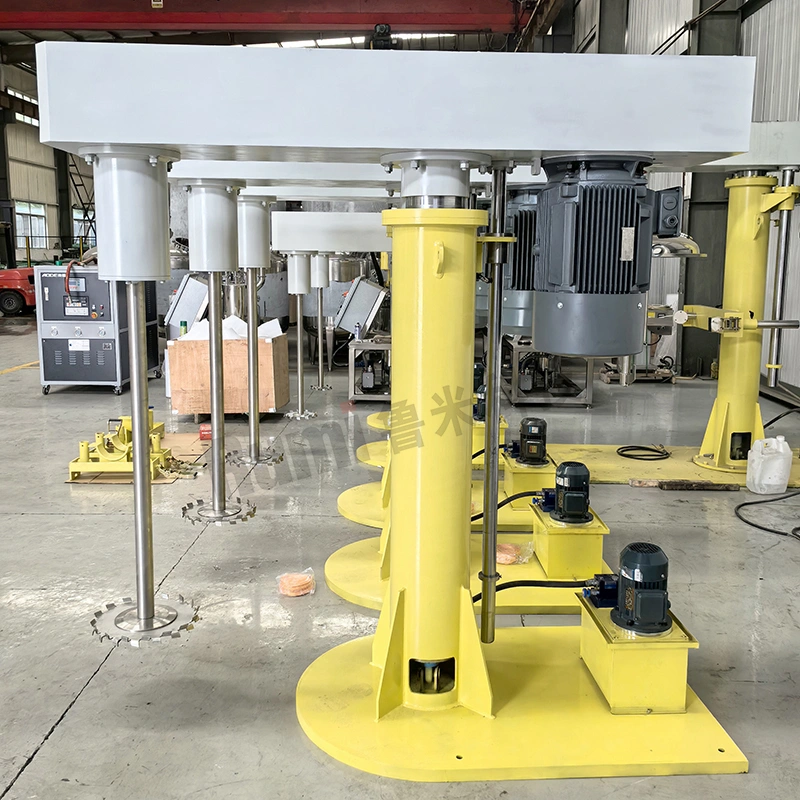

Hydraulic Lift High Speed Disperser

The Hydraulic Lifting High-Speed Disperser represents a flexible, reliable, and high-performance solution for industrial-scale dispersion and mixing operations. By combining powerful high-speed dispersing action with a smooth hydraulic lifting system, it delivers exceptional throughput, operational convenience, and process adaptability—making it the equipment of choice for manufacturers seeking efficient medium to large-batch production with consistent quality. With extensive customization options and proven performance across multiple industries, it is a versatile and indispensable workhorse for modern production facilities.

Online consultation Download

Description

The high speed disperser is mainly used for scattering slurry raw materials with different viscosities. The blade is upand down saw-tooth disc form. The high shear disc blade rotates at a high speed and creates a radial fow within amixing vessel. The low push the material to the edges of the blade. Then the material is rapidly dissolved and mixedamong the liquid.The hydraulic lif disperser use an oil hydraulic lift to raise and lower the disc blade from and into the mixing tank. Thelifting is stable and safe. It's uaually for big batch production.

Features

Hydraulic Lifting;

Explosion-proof type is available;

Speed adjustable (Frequency Converter Control);

Jacketed tank is optional, which can pass oil or water for heating or cooling

Contact material SUS304 and 316L are optional;

Applications

The Hydraulic Lifting High-Speed Disperser is suitable for the dispersion, mixing, dissolution, and emulsification of materials across a wide viscosity range.

Typical applications include:

Paints & Coatings: Latex paints, industrial coatings, decorative paints, automotive paints
Inks & Dyes: Water-based inks, solvent-based inks, pigments, colorants
Adhesives & Sealants: Glues, binders, resin systems, emulsions
Chemicals: Dyes, pigments, fertilizers, detergents
Cosmetics & Personal Care: Creams, lotions, pastes
Pharmaceuticals & Biotechnology: Suspensions, emulsions
Food Processing: Sauces, pastes, liquid food products
Energy: Battery slurries, advanced material dispersions

Competitive Advantage

Flexible & Efficient Operation

The hydraulic system uses oil as the working medium, with self-lubricating moving parts that ensure long service life, smooth and precise movement, and frequent lifting cycles without performance degradation. The lifting column operates with minimal vibration and low noise, providing a stable working environment.
Stable & Reliable Hydraulic System.

The structure is very simple, it’s very easy to operate
With frequency converter, the speed can be easily adjusted according to the needs.
Easy Maintenance & Cleaning

The dispersing disc is secured to the main shaft with hexagon socket bolts, enabling quick and convenient removal, replacement, and cleaning. Different disc types can be swapped according to specific process requirements. The overall structure is compact and straightforward, facilitating routine maintenance.

Specifications

Model	Disperser Power(kW)	Disperser Speed (rpm)	Processing Capacity (L)	Disc Diameter(mm)
RMFS-4	4	0-1440	50-200	200
RMFS-5.5	5.5	0-1440	80-250	200
RMFS-7.5	7.5	0-1440	100-300	250
RMSZ-11	11	0-1440	100-400	250
RMSZ-15	15	0-1440	150-500	300
RMSZ-18.5	18.5	0-1440	200-800	300
RMSZ-22	22	0-1440	200-1000	300
RMSZ-30	30	0-1440	300-1500	350
RMSZ-37	37	0-1440	400-2000	400
RMSZ-45	45	0-1440	500-2500	450

The motor power and speed wll be customzied as the material property and customer's needs. Above informationis just for your reference. For more accurate information, please feel free to contact us!
