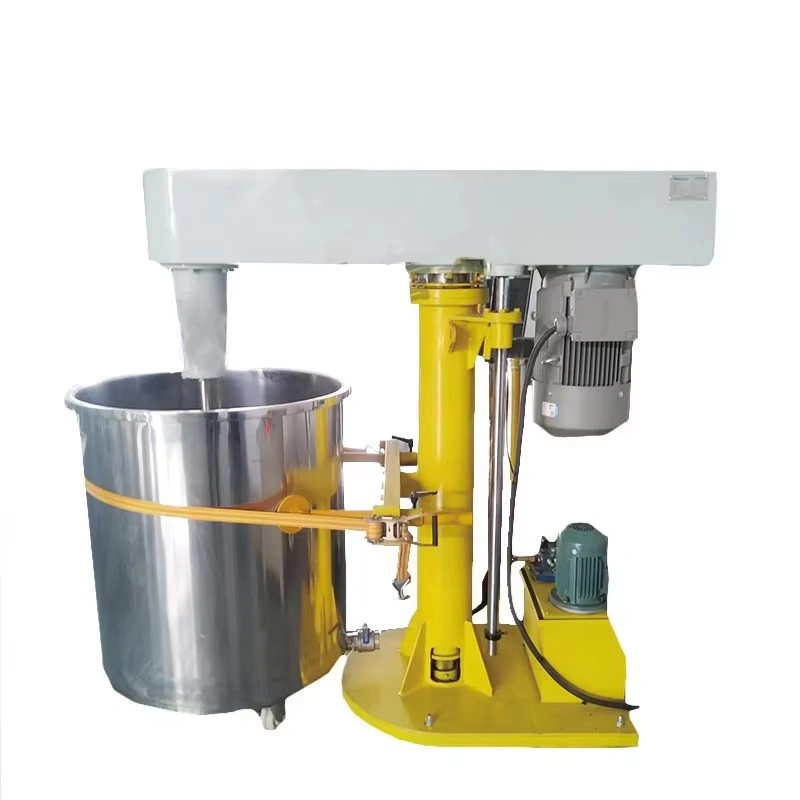

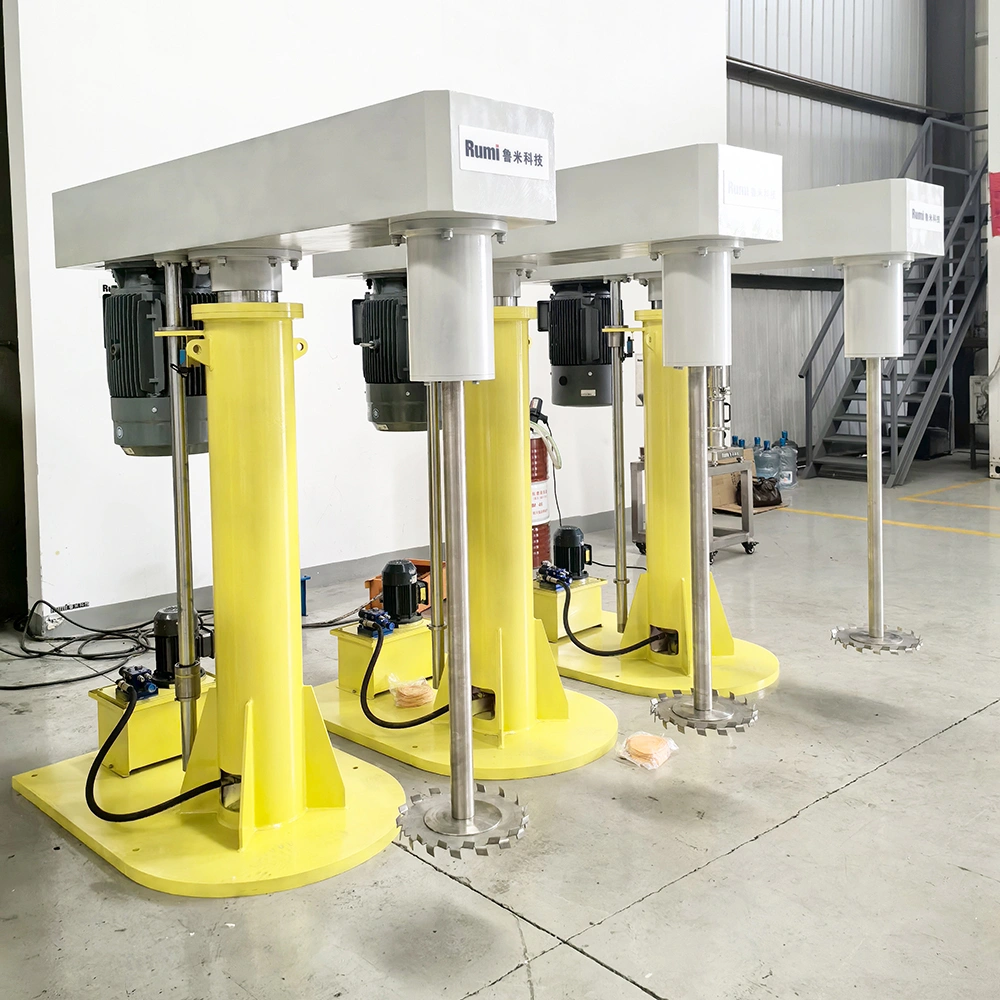

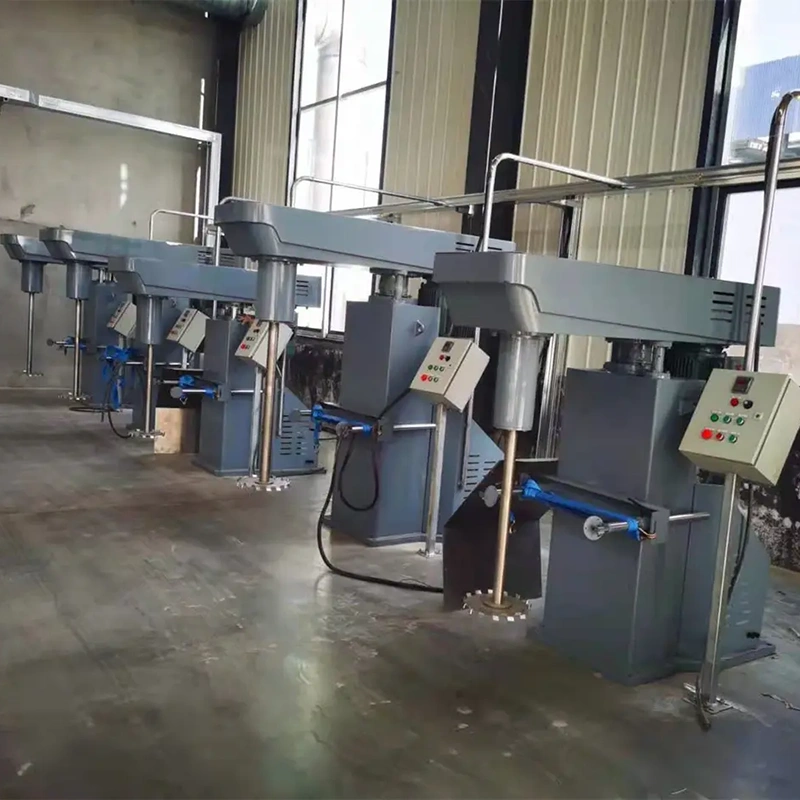

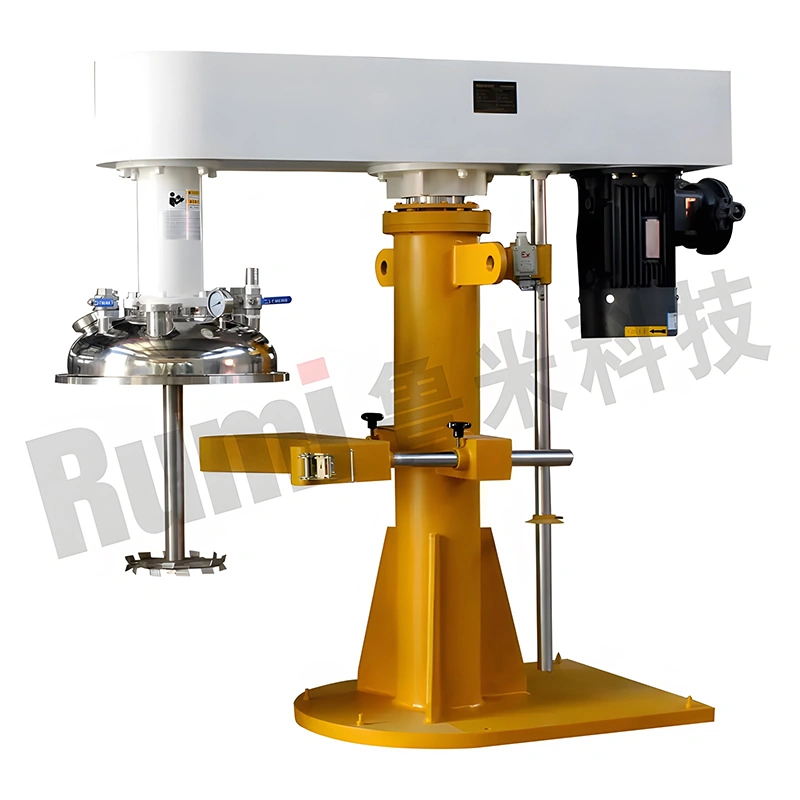

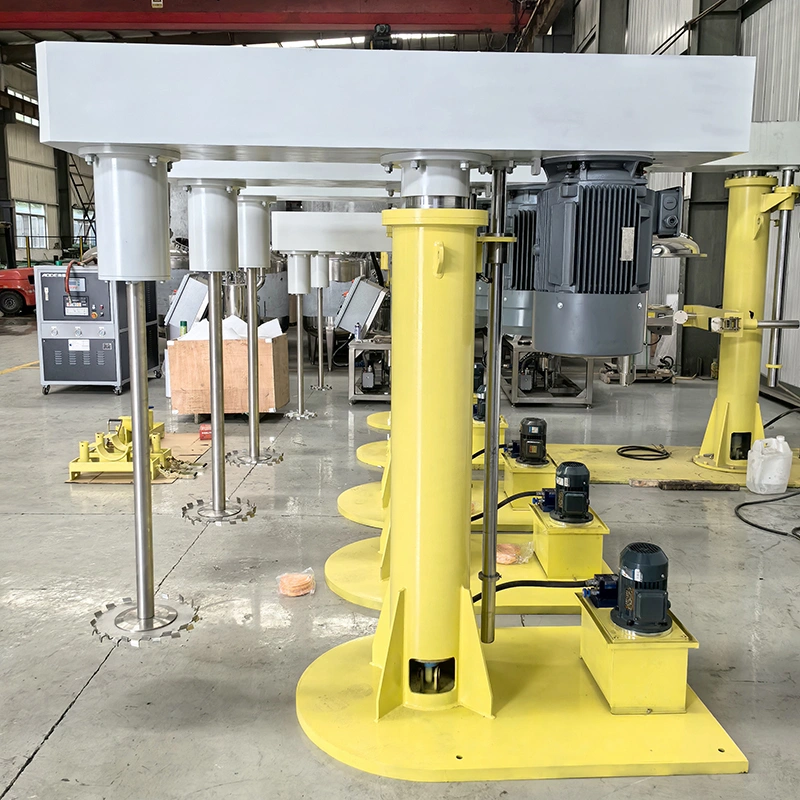

Hydraulic Lift High Speed Disperser

Shanghai Rumi Electromechanical Technology Co., Ltd's headquarters is located in the international financial center – Shanghai. We focus on providing production equipments and integral solutions for fine chemical industry and related fields. Our main products include mixing equipments, dispersing euipments, emulsifiers, mills, reaction kettle, filling machine, etc.

Description

The high speed disperser is mainly used for scattering slurry raw materials with different viscosities. The blade is up and down saw-tooth disc form. The high shear disc blade rotates at a high speed and creates a radial flow within a mixing vessel. The flow push the material to the edges of the blade. Then the material is rapidly dissolved and mixed among the liquid.

The hydraulic lift disperser use an oil hydraulic lift to raise and lower the disc blade from and into the mixing tank. The lifting is stable and safe. It’s uaually for big batch production.


Features

Hydraulic Lifting: the mixing head is raised and lower to the mixing tank by an oil hydraulic lift;

Hydraulic Lifting: the mixing head is raised and lower to the mixing tank by an oil hydraulic lift;

Volumes from 30L to 2000L;

Volumes from 30L to 2000L;

Tank or mixing head is raised and lower to the mixing position by an oil hydraulic lift.

Tank or mixing head is raised and lower to the mixing position by an oil hydraulic lift.

Paddle Combination:double-layer disperser + double planetary paddle + PTFE wall scraper

Paddle Combination:double-layer disperser + double planetary paddle + PTFE wall scraper

Applications

It’s suitable formiddle to big batch dispersing and mixing liquid materials and slurries with material viscosity below 20000cps and solid content below 60%, such as latex paint, industrial paint, water-based ink, inks, adhesives, dyes ,etc.


Competitive Advantage

  • High Efficiency

    High Efficiency

    The mixer consist of double planetary paddles, high speed disperser and wall scraper.

    The double planetary paddles mix the material fully and push the mixture to the edge of the dispersing disc and the scraper remove the mixture from the inner vessel. Such combination enchance the mixing efficiency greatly.

    Jacket tank can pass heating or cooling medium, which can improve the mixing efficiency especially for high viscous material.

  • Easy to operate and convenience.

    Easy to operate and convenience.

    The human-machine interface makes the operation easy and convenience.The function display and operation of the speed regulation, temperature display , spotlight, and lifting are all conducted on the touch screen.

  • Durable

    Durable

    Use industrial three-phase asynchronous motor, it can run for a long time.

    The wetted material is stainless steel 304. And SS316L is optional.

Specifications

Model
Power  ( kw)
Speed (rpm)
Capacity (L)
DISC
Diameter (mm)
RMFS-2.22.20-144050-150150
RMFS-440-144050-200200
RMFS-5.550-144080-250200
RMFS-7.57.50-1440100-300250
RMFS-11110-1440100-400250
RMFS-15150-1440150-500300
RMFS-18.518.50-1440200-800300
RMFS-22220-1440200-1000300
RMFS-30300-1440300-1500350
RMFS-37370-1440400-2000400
RMFS-45450-1440500-2500450
RMFS-55550-1440600-3000450
RMFS-75750-1440800-4000500
RMFS-90900-9601000-5000550
RMFS-1101100-9601000-6000550
RMFS-1321320-9601500-8000600
The motor power will be customzied as the material property and process needs. Above information is just for your reference.
