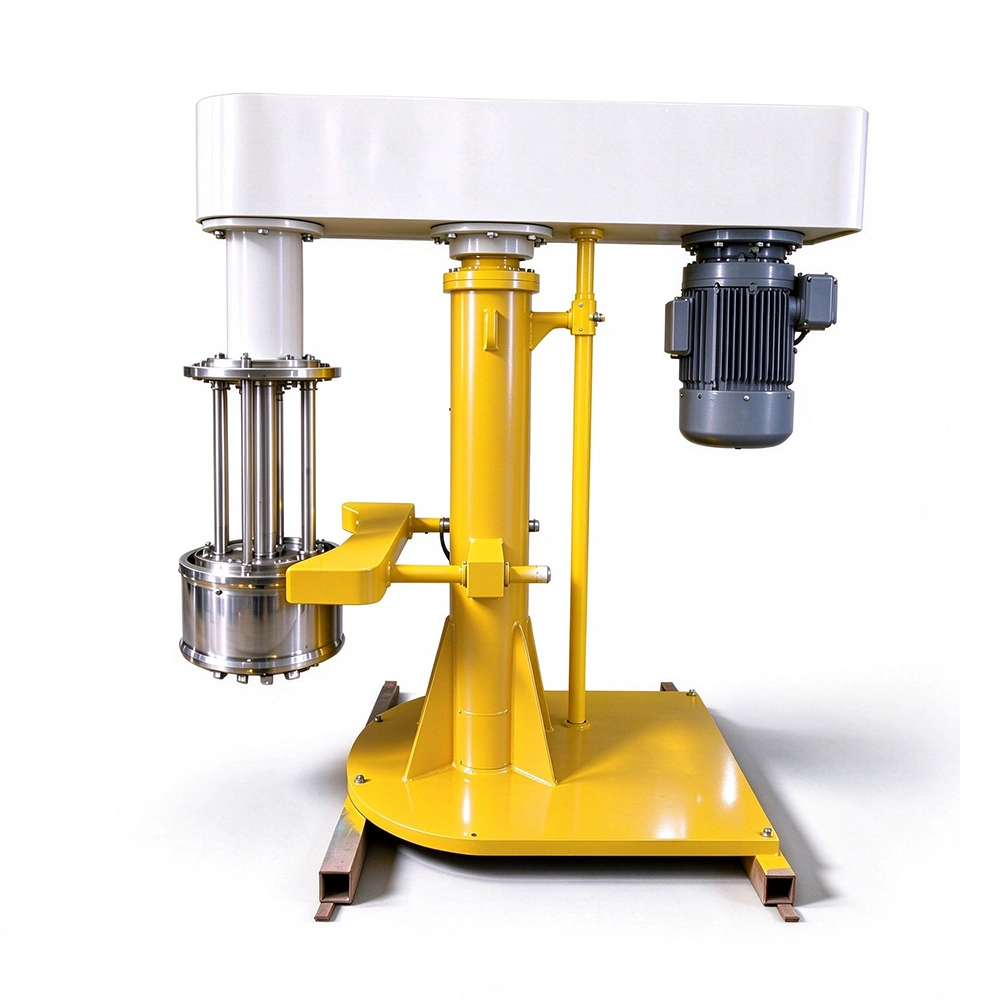

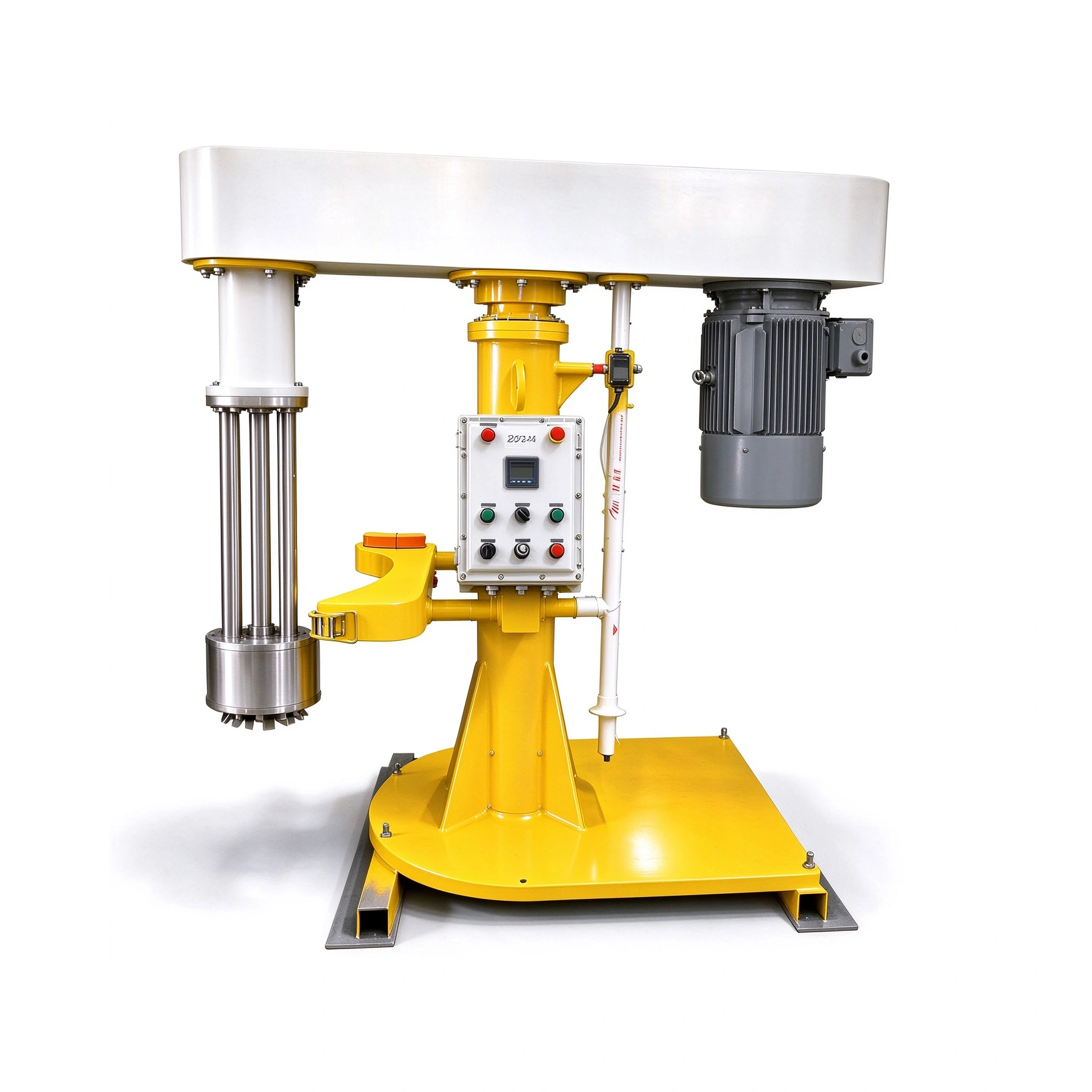

22kW Basket Mill

The 22kW basket mill pairs with the working capacity of a 1000L mobile mixing tank for efficient batch grinding and dispersion. The grinding basket is immersed directly into the tank. No feed pump, piping, or valves are required. Material completes the suction—grinding—dispersion—re-suction cycle in one setup, with low residue and easy cleaning for color changes. The mobile tank moves with the batch: once milled, it can be wheeled directly to the next process step—small footprint, flexible turnover.

The tank comes standard with a cooling jacket. The grinding chamber has its own cooling, and the tank adds a second cooling layer—dual cooling. This suits temperature-sensitive resins, pigment pastes, and inks: stable temperature control, less solvent evaporation, and better batch-to-batch consistency.

Online consultation Download

Description

When the basket mill is working, the motor drives the lever and the bottom dispersion disk to rotate at a high speed, causing a vacuum on the upper part of the dispersion disk and inside the basket chamber. Then the slurry is sucked into the basket grinding chamber. The lever drives the grinding media in the chamber to generate forces in all directions. The particles in the material are constantly collided and rubbed by the media, making the particle size smaller. The high-speed operation of the dispersing disc generates volex flow to suck out the material from the chamber and recirculate it, which has a very significant dispersing, grinding and mixing effect.

Features

Speed adjustable (Frequency Converter Control);

Jacketed tank is optional, which can pass oil or water for heating or cooling

Contact material SUS304 and 316L are optional.

Airtight, can be pumped vacuum or protected by inert gas;

Applications

It’s especially suitable for the industries with high fineness requirements such as pigment, printing ink, coating, functional ceramics, cosmetics, medicine, photovoltaic materials and other industries.

Competitive Advantage

High Grinding Efficiency

The Max speed can be 3000rpm. The grinding beads in the basket move irregularly, resulting high-speed collision and friction with each other, making the material particle size rapidly smaller.
Easy to operate and clean.

The basket mill comes with an energy-saving frequency converter, which can directly control the start-up and speed regulation of the equipment. The unique design of the grinding chamber allows direct cleaning with solvent circulation.

Specifications

Dimension	22kW basket mill + 1000L tank configuration
Circulation mode	Self-priming impeller + dispersion disc; no pump or piping; self-circulating suction—grinding—discharge
Lifting	Hydraulic lift; stroke sufficient for loading/unloading a 1000L mobile tank; basket raised for tank change
Cooling	Grinding basket jacket + tank jacket; dual cooling for temperature control
Color/material changes	No residual piping; fast cleaning; one machine for multiple colors and multiple tanks
Electrical configuration	Single platform; motor, controls, and junction boxes matched at order to the workshop classification—standard industrial or Ex d IIB T4 where solvent-vapor risk requires it
