Electrical Lift High Shear Homogenizing Emulsifier

Shanghai Rumi Electromechanical Technology Co., Ltd's headquarters is located in the international financial center – Shanghai. We focus on providing production equipments and integral solutions for fine chemical industry and related fields. Our main products include mixing equipments, dispersing euipments, emulsifiers, mills, reaction kettle, filling machine, etc.

Online consultation Download

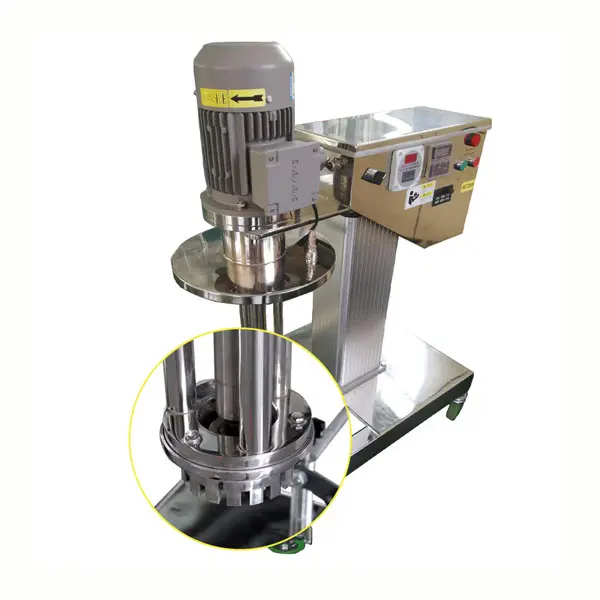

Electrical Lift High Shear Homogenizing Emulsifier

Description

Lab Electrical Lift high speed emulsifier is suitable for low to middle viscosity material. It’s widely used in laboratory, universities and factory for test and experiments. Through mechanical external force, the particle size of liquid-liquid and solid-liquid materials is narrowed, so that one phase is evenly distributed into another or multiple phases to achieve the effects of refinement, homogenization, dispersion and emulsification, thereby forming a stable state of liquid-liquid and solid-liquid dispersion systems.

The structure is simple and easy to use. This emulsifier use servo motor electric lifting and the lifting is stable and and without noise. It adopts frequency converter to adjust the speed. The PLC touch screen is optional. The speed can be displayed on the converter or in the touch screen directly.

Features

Electric Lifting;

Speed adjustable (Frequency Converter Control);

Jacketed tank is optional, which can pass oil or water for heating or cooling

Contact material SUS304 and 316L are optional.

Airtight is optional, can be pumped vacuum or protected by inert gas;

Applications

It is suitable to processing solids and liquids, and liquids and liquids to form solutions, colloids, suspensions or emulsions. It’s widely used in biology, food, coatings, inks, textile auxiliaries, cosmetics, lubricants, and other industries for the dispersion, emulsification and homogenization of product materials.

Competitive Advantage

High Efficiency

It rotates at a high speed andrapidly distribute one phase of material into other kinds of material to reach the homogenizing, dispersing and emulsifying effect.Thus it results a homogeneous, stable and uniform product.
Fine processing precision

The rotor-stator is made of stainless steelforged material by CNC machining center processing and integrated forming. The gap is small and it has good shear fineness.
Easy to operate and convenience

It’s with digital speed display. The PLC touch screen is also optional. This machine use servo motor electric lifting and the lifting is stable and without noise. The emulsifier can be easily raised and lowered by button or touch screen. With frequency converter, the speed can be easily adjusted according to the process needs.

The vacuum function is optional. The vacuum function helps prevent air entry in the material, which makes the finish product more smoother.
Durable

Use industrial three-phase asynchronous motor, it can run for a long time.
The wetted material is stainless steel 304. And SS316L is optional.

Specifications

Model	Power(W)	Speed(rpm)	Rotor-stator type	Stroke(mm)	Processing Capacity(L)
RMRH-1.1	1100	0-2880	Claw/round hole/mesh/others	250	2-5
RMRH-1.5	1500	0-2880	Claw/round hole/mesh/others	300	5-10
RMRH-2.2	2200	0-2880	Claw/round hole/mesh/others	350	10-20
RMRH-4.0	4000	0-2880	Claw/round hole/mesh/others	400	20-40
