High Shear Dispersing Emulsifier Homogenizer Mixer Cosmetic Emulsifier

Description

The laboratory homogenizer is driven by a series-excited high-speed motor, which is suitable for dispersing, emulsifying and homogenizing materials in various industries such as biology, medicine, food, paint, ink, textile auxiliaries, cosmetics, lubricants, pesticides, etc.

Features

Speed Digital Display

High-performance motor, strong torque output, capable of dispersing, emulsification, homogenization in the laboratory

equipped with three different stators, which can be used interchangeably according to process requirements

With securing clip, the working Height is adjustable. Easy and flexible

Applications

Competitive Advantage

Specifications

Model	RMRH-A500
Voltage	AC220V, 50/60HZ
Output Power	500w
Process Capacity (ml)	500-10000ml
Speed Range	200~11000rpm
Speed Control	Digital Stepless Speed
Rotor linear velocity:	18m/s
Torque:	0.96Nm
Viscosity	≤5000 cps (mPas)
Material of working head:	SS316L
Emulsifying Head Diameter	φ70mm
Height of immersion to liquid:	50/236mm

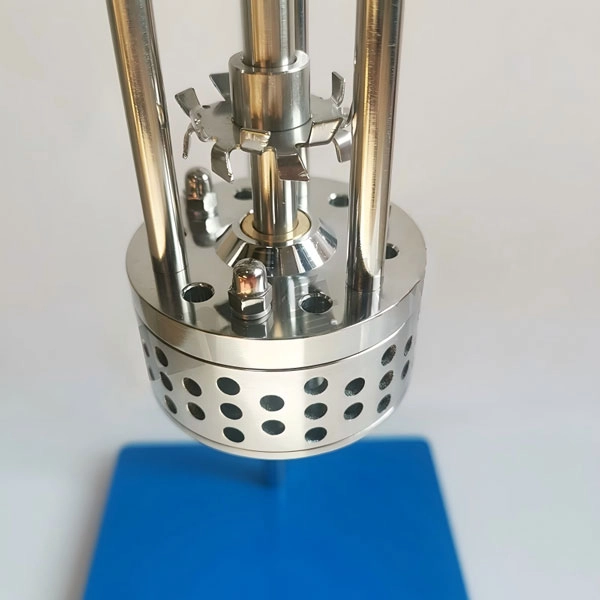

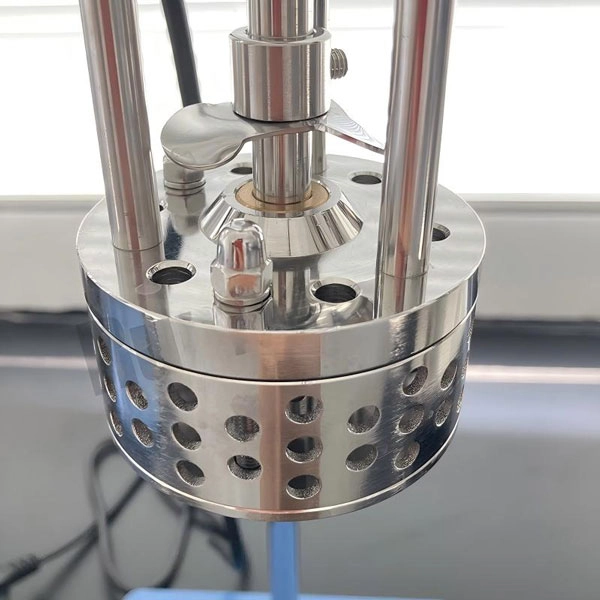

Stator Standard Configuration:	Three types, see the picture
Stator Size	5mm, 20mm, and 50mm
Dimension(mm)	360260760mm
Gross Weight	12 kgs
