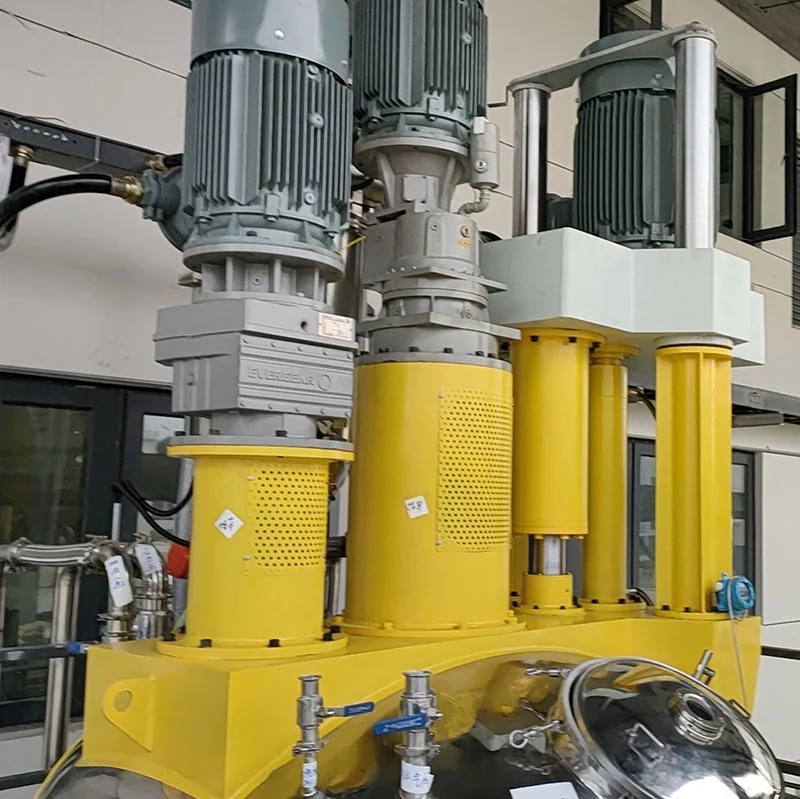

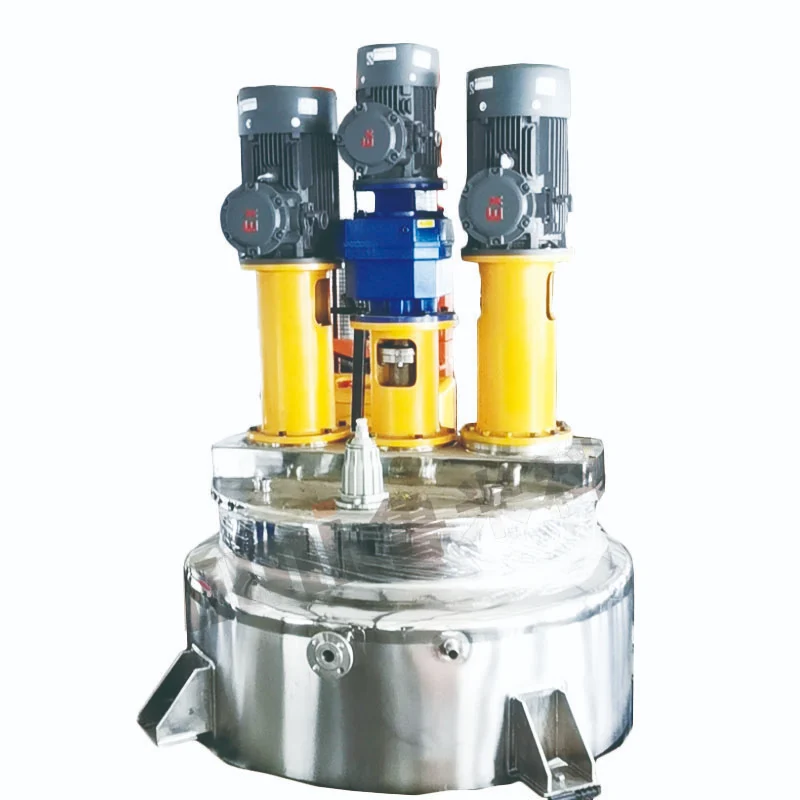

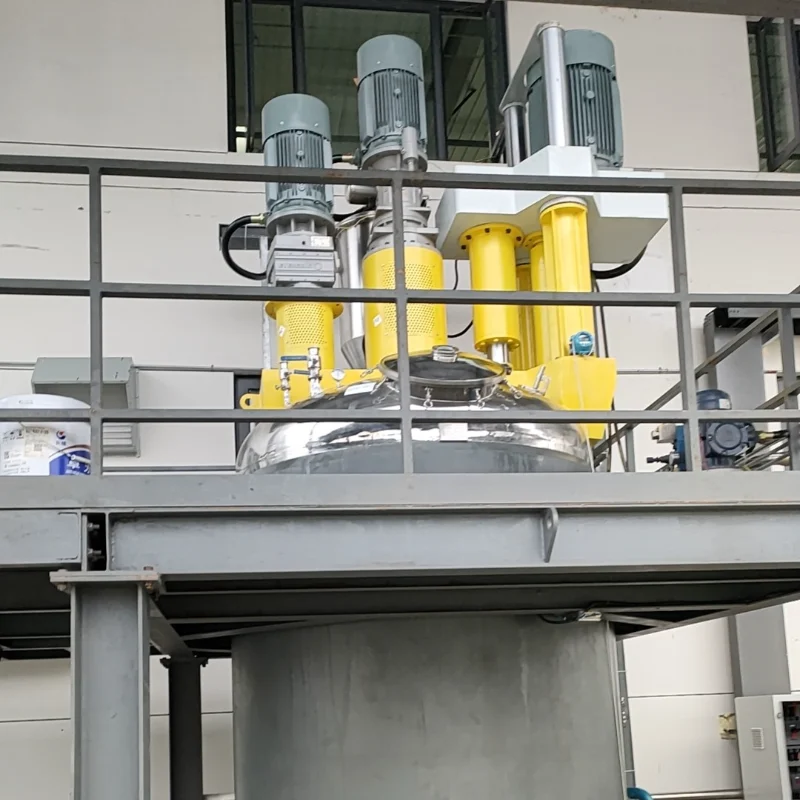

Triple Shaft Mixer

Shanghai Rumi Electromechanical Technology Co., Ltd's headquarters is located in the international financial center – Shanghai. We focus on providing production equipments and integral solutions for fine chemical industry and related fields. Our main products include mixing equipments, dispersing euipments, emulsifiers, mills, reaction kettle, filling machine, etc.

Online consultation Download

Description

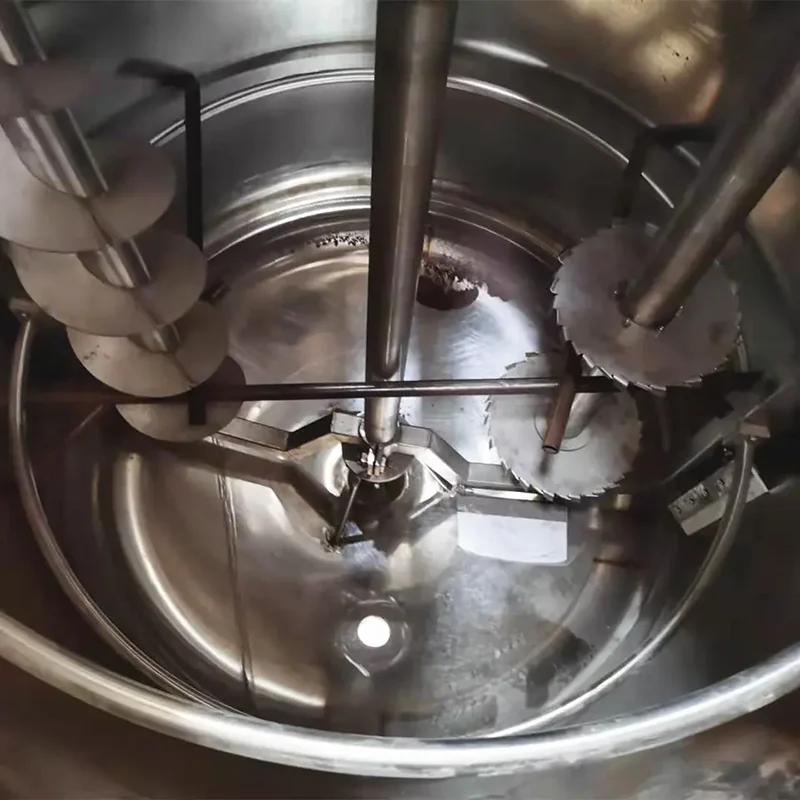

The triple shaft mixer are designed to mix and blend medium to high viscosity materials. Because high viscosity material has poor fluidity, we choose the machine that integrates blending, despersion and wall scraping together. The triple shaft mixer usually has a high speed disperser, helical blade and anchor blade with wall scraper. According to different process requirements, the triple mixer has various combination forms, such as high speed disperser+homogenizer+anchor blade with wall scraper.

Features

Different blade combinations, such as high speed dispersing disc+helical blade+anchor blade with scraper, two high speed disperser+anchor blade with scraper, high speed disperser+ rotor/stator+anchor blade with scraper

Three independly-driven agitators

The high speed disperser can be designed to go up and down while rotating.

Speed adjustable (Frequency Converter Control);

Jacketed tank, Can be heated or cooled (using heater or chiller);

Contact material SUS304 and 316L are optional.

Airtight, can be pumped vacuum or protected by inert gas;

Applications

It’s suitable for mixing printing inks, sealants, hot melt adhesives, magnetic media slurry, creams, lotions, toothpastes, etc.

Competitive Advantage

High Efficiency

The high speed disperser produce high shear to dissolve the ingredients. It alone has limited area of influence when mixing in viscous material. The low speed helical blade blend and roll the mixture from up and down, the anchor blade push the material to the edge of the dispersing disc, and the scraper sweep the vessel inner wall. Such combination improve the material uniformity and enhance the heat exchange.

Specifications

Model	Tank capacity (Litres)	Disperser Power (KW)	Disperser Speed (RPM)	Helical Mixer Power (KW)	Helical Mixer Speed(kw)	Anchor mixer power (KW)	Anchor Speed (RPM)
RMSZ-500	500	22	0-1440	15	0-180	15	28
RMSZ-5000	5000	55	0-1440	37	0-180	22	22

The motor power and speed will be customzied as the material property and customer’s needs. Above information is just for your reference. For more accurate information, please refer to quotation or drawing.
