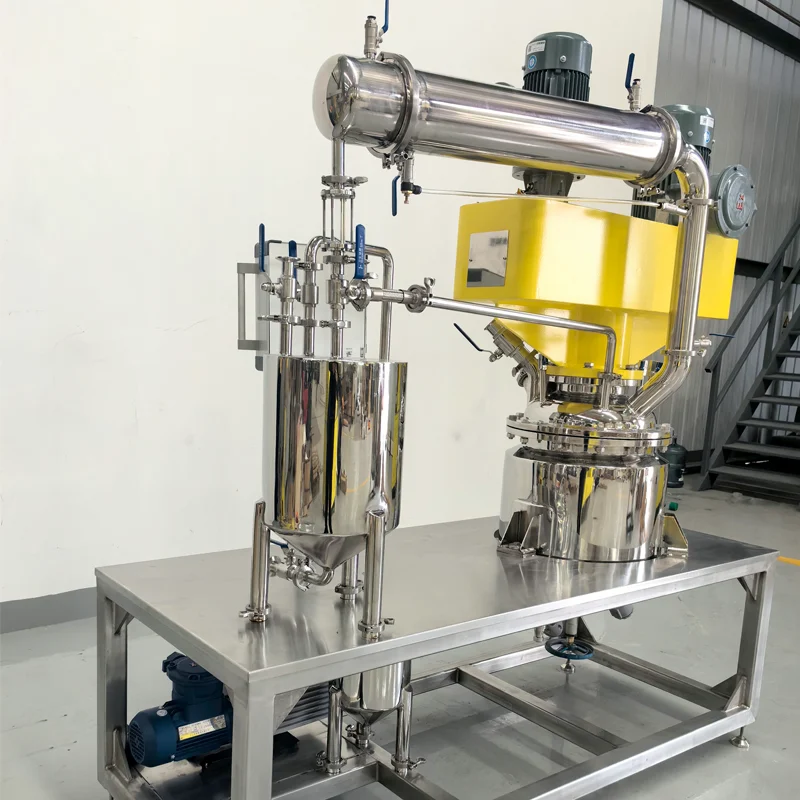

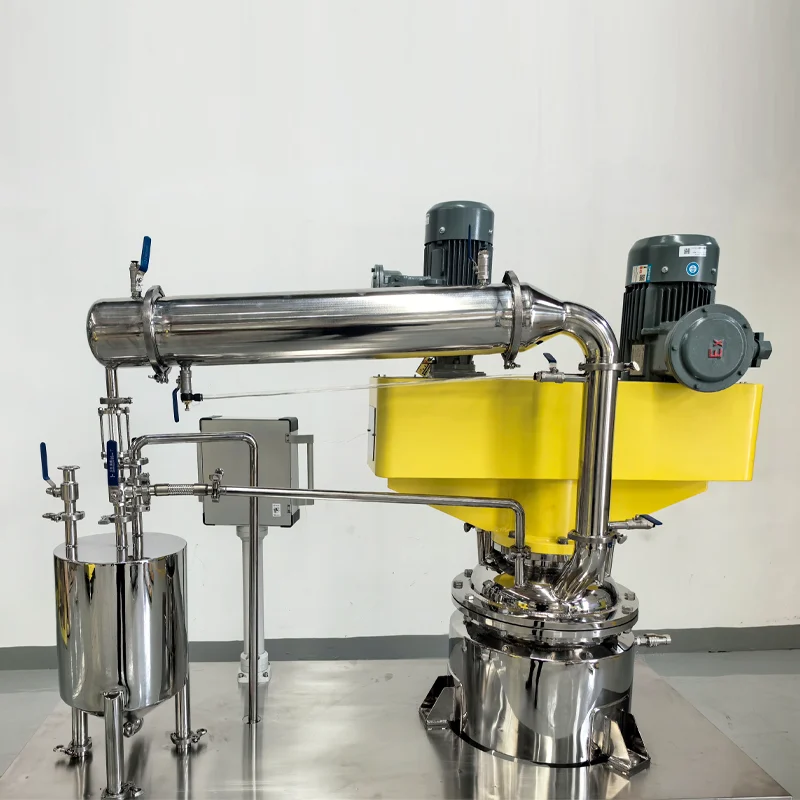

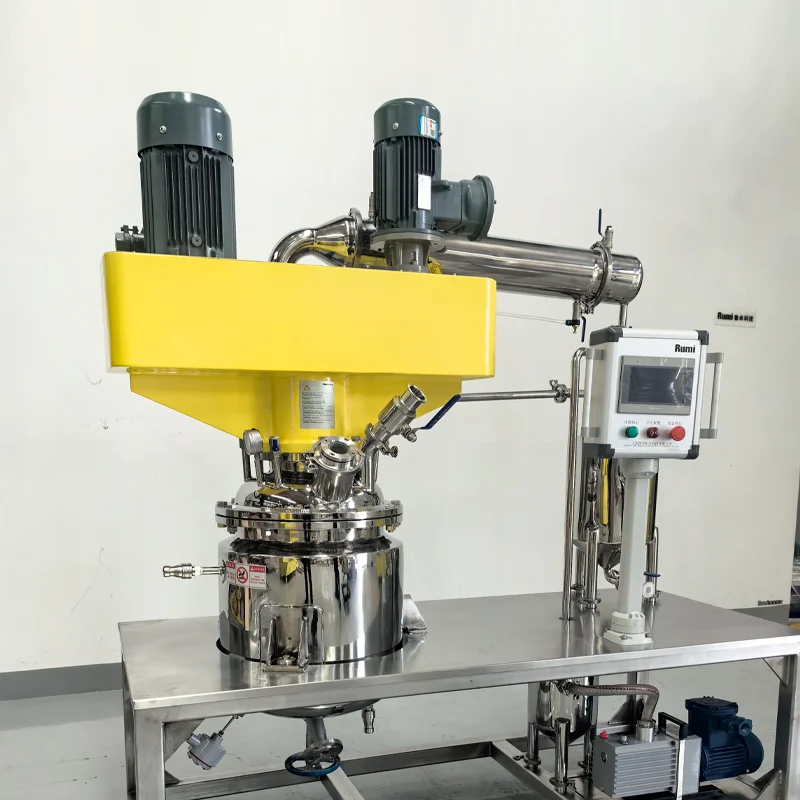

Double Shaft Dispersing Tank

Shanghai Rumi Electromechanical Technology Co., Ltd's headquarters is located in the international financial center – Shanghai. We focus on providing production equipments and integral solutions for fine chemical industry and related fields. Our main products include mixing equipments, dispersing euipments, emulsifiers, mills, reaction kettle, filling machine, etc.

Online consultation Download

Description

The dispersing disc in the middle rotates at a high speed and has a high linear velocity, which rapidly dissolves the powder in liquid and prevents them from agglomeration. The anchor feeds product into the high speed disperser blade and ensures that the mixture is constantly in motion. The anchor with scrapers remove materials from the interior vessel walls to enhance the mixing efficiency. Both agitators are available for variable speed operation.

Features

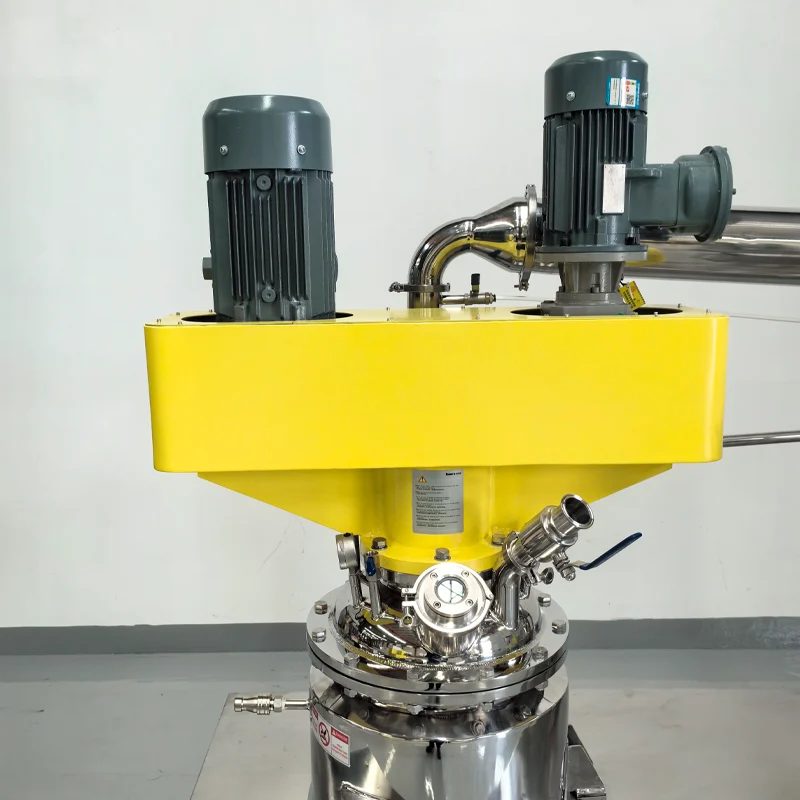

Concentric shaft design, two independently-driven agitators：high speed disperser + low speed frame mixer with PTFE wall scraper

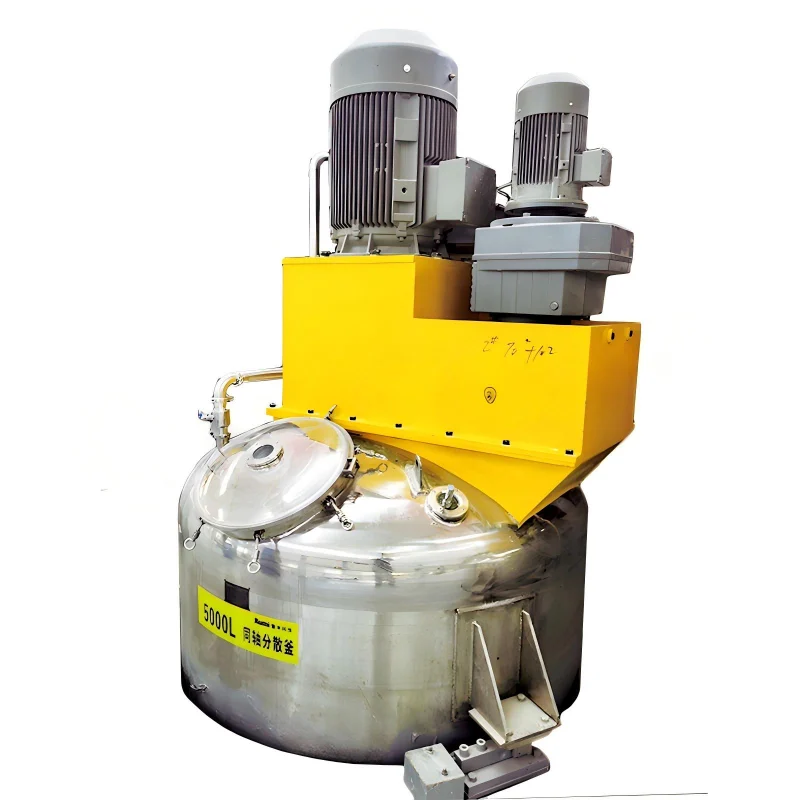

Platform Design

Speed adjustable (Frequency Converter Control)

Jacketed tank

Wetted parts Stainless Steel 304. SS316L is optional

Airtight, can be pumped vacuum or protected by inert gas

Can be heated or cooled (using heater or chiller)

Applications

It’s suitable for big batch production for material dissolving, mixing, blending, reaction and other production processes in chemical industries such as putty, paint, ink, pigment, gel, resin and etc.

Competitive Advantage

High Efficiency

The mixer consist of two impellers: One high speed disperser in the middle and outer anchor frame type with PTFE scraper. The anchor paddle push the material to the edge of the dispersing disc and the scraper remove the mixture from the inner vessel. Such combination enchance the mixing efficiency much more compared with one single paddle structure. Jacket tank can pass heating or cooling medium, which can improve the mixing efficiency especially for high viscous material.
Durable

Use industrial three-phase asynchronous motor, it can run for a long time. The wetted material is stainless steel 304. And SS316L is optional.

Specifications

Model	Disperser Power	Rotation Speed	AnchorPower	Anchor Speed	Capacity
RMSZ-2000	18.5kW	0-1440	7.5kw	63rpm	2000L
RMSZ-3000	30kW	0-1440	11kW	42rpm	3000L
RMSZ-5000	45kW	0-1440	15kW	42rpm	5000L
RMSZ-6000	55kW	0-1440	18.5kW	36rpm	6000L
RMSZ-8000	75kW	0-960	22kW	36rpm	8000L
RMSZ-10000	90kW	0-960	30kW	23rpm	10000L
RMSZ-12000	110kW	0-960	30kW	17rpm	12000L
