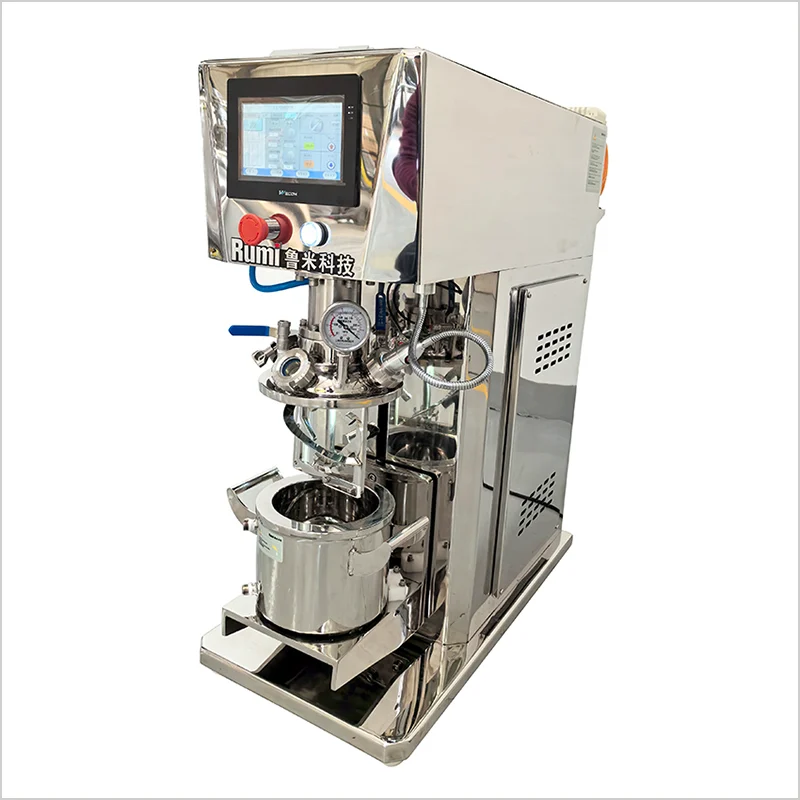

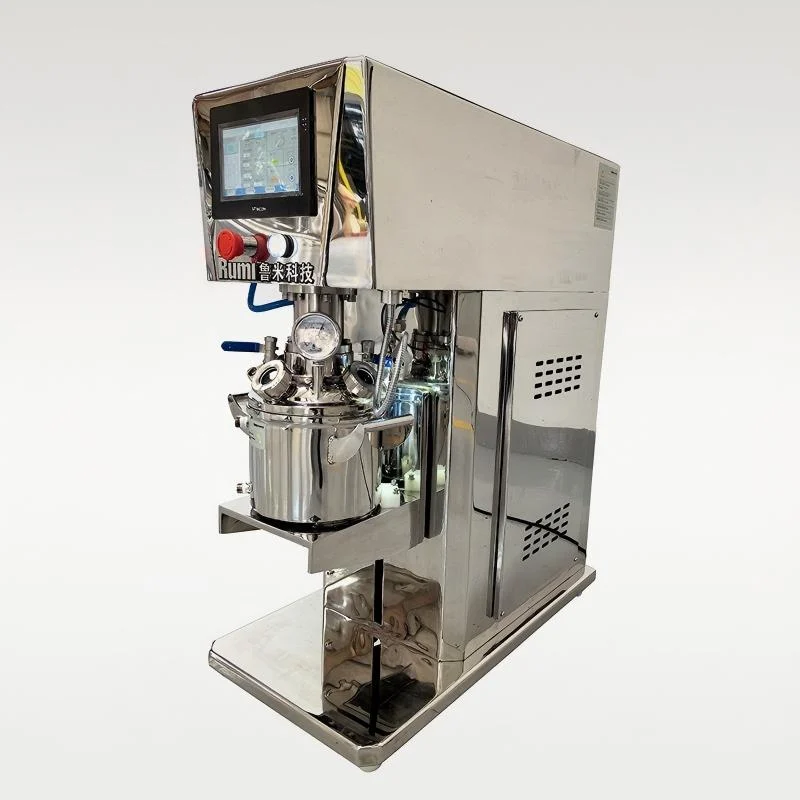

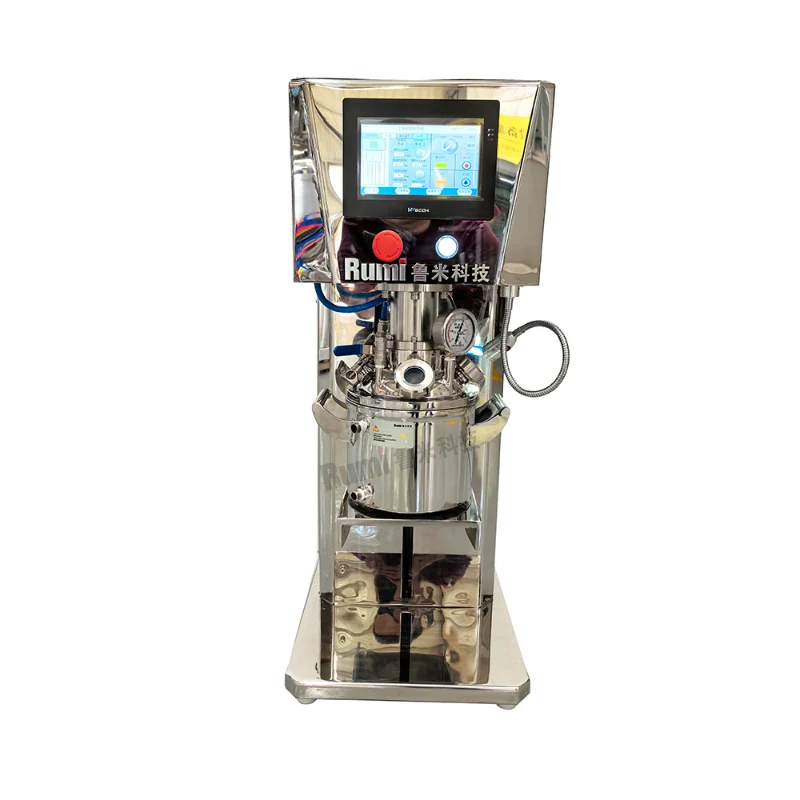

Lab Vacuum Double Shaft Dispersing Mixer

Description

Lab Vacuum Double Shaft Dispersing Mixer is suitable for medium and high viscosity material. This lab dispersing mixer includes a high speed disperser and low speed anchor mixer with wall scraper. The anchor pushes the material to the dispersing disc, and the material to be rapidlly dissolved and mixed. The PTFE wall scraper sweep the material from the interior of the tank without leaving residual. It is an ideal laboratory equipment for product formulation research & high valued product making.

Features

Concentric shaft design：high speed disperser + low speed frame mixer with PTFE wall scraper;

Electric Lifting;

Speed adjustable (Frequency Converter Control)

Jacketed tank

Contact material SUS304 and 316L are optional

Airtight, can be pumped vacuum or protected by inert gas

Can be heated or cooled (using heater or chiller);

Single Phase and three phase are optional;

Can be customized as customer's needs

Applications

It’s widely used in laboratory test or small batch production in industry such as viscous paint, pigment, ink, adhesive and sealant, putty and etc.

Competitive Advantage

High Efficiency

The mixer consist of two impellers: One high speed disperser in the middle and outer anchor frame type with PTFE scraper. The anchor paddle push the material to the edge of the dispersing disc and the scraper remove the mixture from the inner vessel. Such combination enchance the mixing efficiency much more compared with one single paddle structure. Jacket tank can pass heating or cooling medium, which can improve the mixing efficiency especially for high viscous material.
Easy to operate and convenience.

It’s with digital speed display. The PLC touch screen is also optional. This machine use hydraulic lifting and the lifting is stable and safe. The mixer can be easily raised and lowered by button or touch screen. With frequency converter, the speed can be easily adjusted according to the process needs.
Durable

Use industrial three-phase asynchronous motor, it can run for a long time. The wetted material is stainless steel 304. And SS316L is optional.
